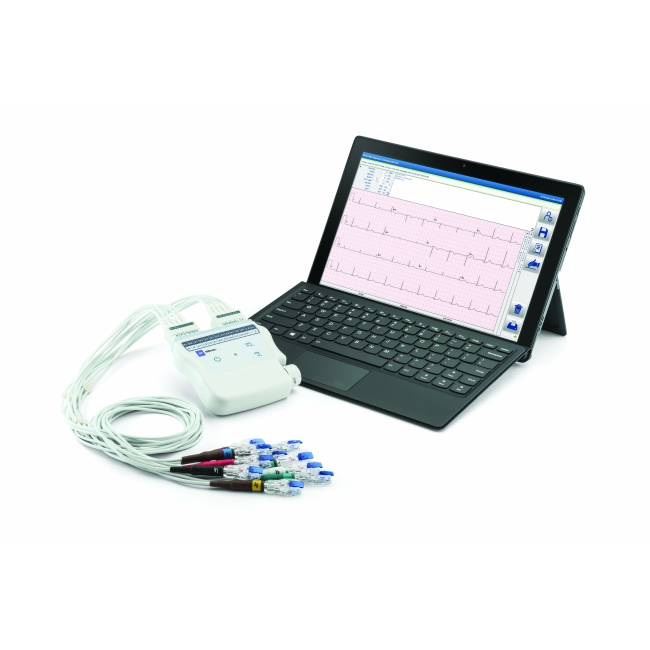

Diagnostic Cardiology Suite ECG c/w Wireless Acquisition Module

Specification

- 12-lead resting ECG
- Simultaneous acquisition of all 12 leads
- Standard leads acquired: I, II, III, aVR, aVF, V1, V2, V3, V4, V5, V6
- Frequency response: 0.05 Hz - 300 Hz
- Defibrillator protection complies with AAMI standards and IEC 60601-2-25
- QTc Method: Bazett, Fridericia, Linear
- Extra Measurements: RR, QTcB, QTcF
- Gain: 2.5, 5, 10, 20 mm/mV
- Frequency response: 0.05 - 300 Hz
- Digital sampling rate:
- 40,000 samples/sec/channel used for pacemaker spike detection
- 1,000 sample/sec/channel used for recording and analysis
- Filters:
- AC filter: None, 50 Hz, 60 Hz
- Low-pass filter: 40 Hz, 150 Hz, 300 Hz
- Report formats: Standard or Cabrera; 3+1, 3+3, 6, 6+6, or 12 channel

Feature

- ECG and spirometry applications launched directly from EMR
- Utilise one device for ECG and spirometry exams for a common workflow and setup
- Capable of integration to ERM systems*
- Wired acquisition with the Welch Allyn AM12 module
- Wireless acquisition with the Welch Allyn WAM
- Captures best 10 seconds of ECG data from memory, reducing need for repeat ECG's
- Supports DICOM and HL7 communication
- ECG complies with ACC, AHA and HRS recommendations for adult / paediatric patients
- Streamlines workflow by capturing and saving an ECG is as few as two clicks
- Save PDF's to any network folder
- Defibrillator protection
- VERITA ECG algorithm limits filtering to help show critical waveform data
- Streamlines workflow by capturing and saving an ECG is as few as two clicks
- Securely control user logins, assign user roles and access audit trails
- 36 month warranty on the ECG device (UTK, WAM)
- 13 month warranty on software
- 90 day warranty on leads and clips
- * Dependent upon EMR System, IT infrastructure and may require 3rd Party IT support to implement
