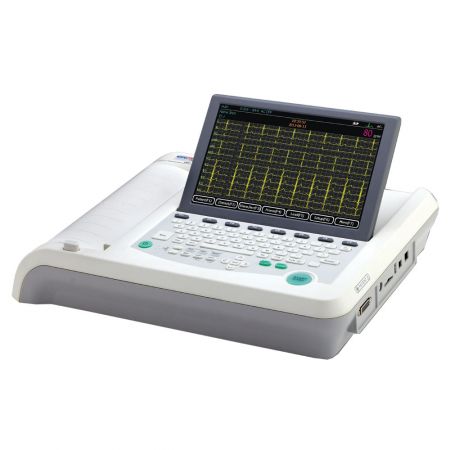

The 12 Channel EM-1201 Interpretive electrocardiograph features an easy to read foldable colour screen capable of displaying all 12 waveforms simultaneously and single button operation.
Specification
- Dimensions (H*W*D): 98mm * 435mm * 335mm- Weight: 4kg
- Power Source: Mains supply with rechargeable Li-ion battery
- Average Battery Life: Approx 360 ECGs
- Frequency Response: 0.05Hz to 150Hz
- Filters: AC Filter, DFT Filter, EMG Filter, LOWPASS Filter
- Record Speed: 5mm/s, 6.25mm/s, 10mm/s, 25mm/s, 50mm/s
- Sample Rate: 1000 sps/channel (normal), 10,000 sps/channel (pacemaker detected)
Feature
- 12-channel resting desktop ECG- Simultaneous 12 leads ECG data acquisition and display
- Easy to read foldable 10 inch / 25 cm colour screen
- Full silicon alphanumeric QWERTY keypad
- One-touch operation for fast ECGs
- Built in A4 thermal printer z/fold or roll compatible
- Internal SD card holds over 10,000 reports in XML/PDF/BMP/JPG/DICOM format
- Built in lithium ion rechargeable battery supplies power for over 360 ECGs
- Internal pacemaker detection
- Extended printing once arrhythmia is detected
- Network connectivity
