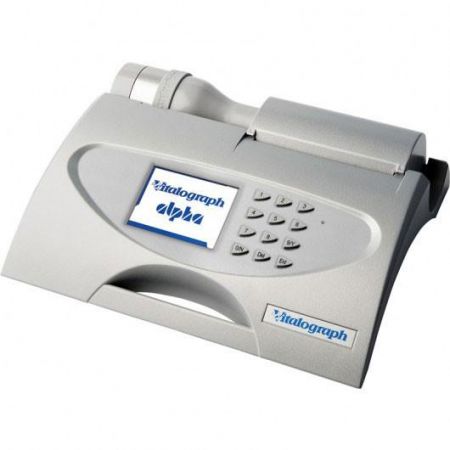

Vitalograph Alpha 65010 Desk Top Spirometer

The Vitalograph Alpha is a simple to use desktop spirometer for medical centres that presents test data in a clear, easy to read format.

Features:

• Measures VC, FVC, FEV1, FEV1 Ratio, PEF, FEF25-75% and more


• On-screen visualisation of volume/time and flow/volume curves


• Saves multiple pre-tests for subsequent post-testing


• Compact Flash removable memory card slot


• Presents the test information in clear, easy to read format


• Links to PC via USB with Vitalograph Reports Software


• Fast, silent printer that prints 140 tests per roll


• Battery and mains power with integrated battery for off-site testing


• Real time clock


• Autoclavable flowhead


• Facility for user accuracy checks


• Automatically selects the best test


• Complete with stylish carry case

Additional Information:

• Size: 300mm x 250mm x 75mm


• Weight: 2kg net


• Parameters: Varies by country variant


• Operating Temperature Range; ATS Limits: 17-37°C


• Design Limits: 10 - 40°C


• Voltage/Frequency: 110 - 250V~50/60Hz


• Flow Detection Principle: Fleisch type pneumotachograph


• Volume Detection: Flow Integration sampling @ 100Hz


• Accuracy when Operated in Operating Temperature Range Conditions;


• Flow +/- from 10% to 5%


• Max flow rate +/-16L/s


• Min flow rate +/-0.02L/s


• Volume Accuracy: Better than +/-3%


• Maximum Displayed Volume: 10L


• Maximum Test Duration: 90 seconds


• Flow Impedance; 0.1kpa L/s @ 14L/s


• Complies with ATS/ERS 2005


• Printer: Thermal


• Performance Standards; ATS/ERS 2005 & ISO 26782:2009, ISO 23747:2007


• Safety Standards: IEC 60601-1:2005


• Medical Safety Standard: Medical Devices Directive 93/42/EEC as amended


• Designed & Manufactured Under; ISO 13485:2003,
  FDA 21CFR820


• Communications: USB and Compact Flash
